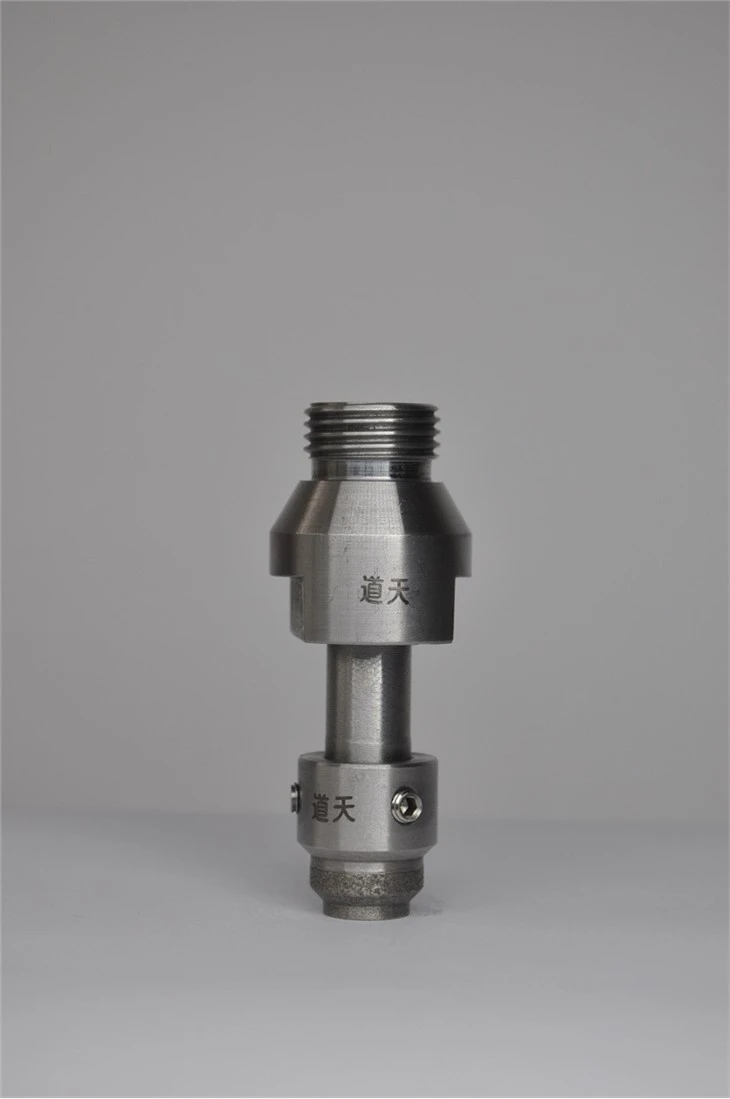

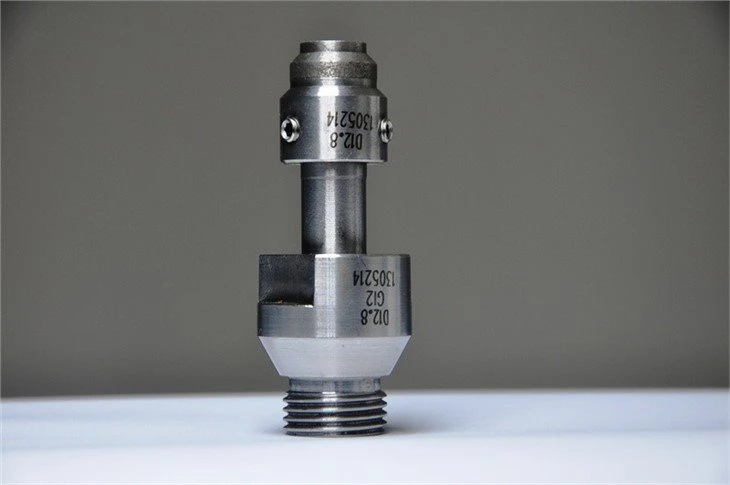

Threaded Split Luv Rau Automotive Iav
Threaded sib cais laum me ntsis rau lub tshuab lub tsheb yog tsim ua ob-thooj laum me ntsis nrog xov shoking txoj kev. Feem ntau cov phob laum laum yuav tsum tau saum thiab hauv qab laum ua haujlwm ua ke mus laum thiab chamfer qhov siv rau iav daim ntawv thov tsheb.
Hauj lwm lawm
Lub hauv paus rau phau ntawv
Threaded sib cais laum me ntsis rau lub tshuab lub tsheb yog tsim los ua ob-laum me ntsis nrog xov shoking txoj kev. Feem ntau cov phob laum laum yuav tsum tau saum thiab hauv qab laum ua haujlwm ua ke mus laum thiab chamfer qhov rau cov iav thov tsheb.
Daotian muaj ntau cov khoom siv tsav kom tau raws li cov neeg yuav khoom sib txawv.
Cov lus qhia
Laum lub cheeb tsam laum: φ 8-42
Laum qhov tob: {{0. {65-0. 85
Iav tuab: 2. 5-6
Tus tub ntxhais xyaum ib lub qhov siv ib txheej ntawm sab saum toj thiab hauv qab hnyiab. Yog hais tias lub hauv qab laum grinds ntau dua 60%, muaj qhov ua tau ntawm tawg lub khob rau saum. Lub laum saum toj kawg nkaus yuav tsum tau sib tshooj ntawm txoj kev hauv qab tho kom tshem tawm cov kab ntu tsim los ntawm cov laum hauv qab. Li no, feem ntau, sab saum toj laum yog muab nrog qhov ntev laum qhov tob dua qhov hauv qab laum. Tus qauv laum qhov tob tob ntawm cov tub ntxhais tho yog:
|
Iav Thickness (Mm) |
Laum Qhov Loj (MM) |
|
|
Hauv qab laum |
Sab saum toj laum |
|
|
2.5 |
1.2 |
1.6 |
|
3.2 |
1.5 |
2.0 |
|
3.5 |
1.8 |
2.0 |
|
4.0 |
2.0 |
2.5 |
|
5.0 |
2.5 |
3.0 |
|
6.0 |
3.0 |
3.0 |
Txheej txheem tsis
1. Cov nqi noj khoom haus teeb tsa: Tus nqi pub noj yuav tsum tau xaiv txog lub khob tuab thiab lub taub tawv txiav kom tsis txhob muaj cov iav lim dej ntau dhau; Thaum chamfering tus nqi pub yuav tsum tau txo kom ntseeg tau lub qhov zoo.
2. Hnav khaub ncaws ua kom paub tseeb tias muaj pob zeb diamond muaj tseeb tau tshwm sim, feem ntau nyob rau hauv cov txheej txheem kev hnav khaub ncaws ntau zaus yuav tsum yog ntawm 20 thiab 50 qhov.
