Nthuav nto sib tsoo riam phom khawv koob, ob qhov kawg sib tsoo log

Kev sib tsoo yog cov cuab yeej siv dav siv hauv kev tsim khoom, uas ua cov txheej txheem ua haujlwm rau qhov loj thiab qhov tseeb los ntawm kev sib tsoo thiab txiav. Txawm li cas los xij, muaj ntau txoj hauv kev los zom, txhua tus nrog nws tus kheej qhov tshwj xeeb ntawm daim ntawv thov thiab qhov zoo. Niaj hnub no, peb yuav kawm ntxiv txog ib qho ntawm txoj kev sib tsoo tseem ceeb- ob lub ntsej muag sib tsoo.

Ob chav kawg sib tsoo yog ib qho kev ua haujlwm siab heev, uas tau siv dav hauv kev tsim khoom. Los ntawm kev sib tsoo ob lub ntsej muag sib luag tib lub sijhawm, lub sijhawm ua haujlwm thiab cov txheej txheem raug txo, thiab kev ua haujlwm tau zoo dua qub. Cov hauv qab no yuav yog cov lus qhia ntxaws ntxaws rau lub tswv yim ntawm ob qhov kawg sib tsoo, qhov zoo, hom thiab qauv ntawm kev sib tsoo log thiab daim ntawv thov ntau yam thiab cov teeb meem thiab cov kev daws teeb meem.

Ua ntej, lub tswv yim ntawm ob qhov kawg sib tsoo

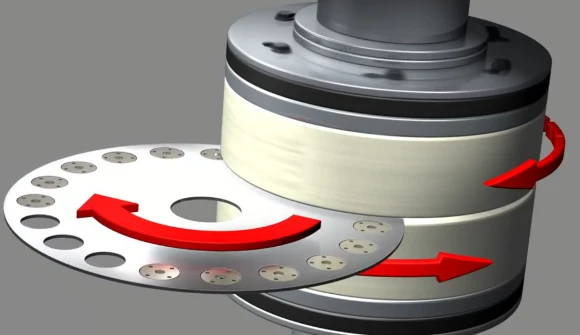

Ob chav kawg sib tsoo hais txog kev sib tsoo ib txhij ntawm ob lub ntsej muag kawg ntawm cov khoom ua haujlwm kom ua tiav qhov yuav tsum tau muaj qhov tseeb thiab qhov zoo ntawm qhov chaw. Piv nrog rau cov tsoos ib-kawg sib tsoo, ob-kawg sib tsoo tuaj yeem tswj tau qhov tseeb ntawm geometric thiab cov duab tsis zoo ntawm cov khoom ua haujlwm thiab txhim kho kev ua haujlwm zoo ntawm lub workpiece.

Thib ob, qhov zoo ntawm ob qhov kawg sib tsoo

Txhim kho kev ua haujlwm zoo: Vim tias kev sib tsoo ob zaug tuaj yeem ua tiav ntawm ob lub ntsej muag kawg tib lub sijhawm hauv ib qho kev ua haujlwm, nws tuaj yeem txo cov sijhawm ua haujlwm thiab cov txheej txheem, thiab txhim kho kev tsim khoom.

Txhim kho kev ua haujlwm zoo: Kev ua tiav ntawm ob-kawg sib tsoo yog siab dua, feem ntau tuaj yeem ncav cuag qib P2 thiab siab dua, thiab qhov roughness ntawm cov txheej txheem kuj tsawg. Qhov no yuav pab txhim kho qhov tseeb geometric thiab qhov zoo ntawm lub workpiece.

Kev txo nqi: Vim tias kev sib tsoo ob zaug tuaj yeem txo cov sijhawm ua haujlwm thiab cov txheej txheem, cov nqi tsim khoom thiab kev siv zog yuav raug txo.

Kev siv ntau yam: ob lub ntsej muag sib tsoo yog tsim rau ntau yam ntawm lub ntsej muag sib luag, xws li ncej, lub tes tsho, iav, thiab lwm yam, yog li nws tau siv dav hauv kev tsim khoom.

Thirdly, hom ob kawg sib tsoo log

Lub bolt fastening log nyob rau hauv peb cov sib tsoo log yog ib hom ntawm ob-kawg sib tsoo, thiab corundum los yog silicon carbide abrasive tuaj yeem xaiv raws li cov khoom sib txawv ntawm kev sib tsoo workpiece. Super-hard sib tsoo lub log tuaj yeem xaiv pob zeb diamond lossis CBN abrasive raws li cov khoom siv ntawm cov khoom sib tsoo, uas tuaj yeem ua rau hlau disks, resin disks thiab ceramic disks.

Thaum kawg, daim ntawv thov ntau yam ntawm ob qhov kawg sib tsoo log

Ob chav kawg sib tsoo lub log yog dav siv nyob rau hauv kev lag luam ntau lawm thiab yog haum rau txhua yam ntawm workpieces nrog parallel kawg lub ntsej muag. Piv txwv li:

Cov kabmob: Cov kabmob yog ib feem ntawm cov khoom siv sib xyaw, nrog rau kev ua haujlwm siab thiab kev kub ceev. Kev sib tsoo ob zaug tuaj yeem siv los ua cov nplhaib sab nraud thiab lub nplhaib puab ntawm cov kabmob los txhim kho qhov tseeb ntawm qhov tseeb thiab qhov zoo ntawm cov kabmob.

Iav: Iav yog ib qho tseem ceeb ntawm cov tshuab kis tau tus mob, xav tau lub zog siab thiab hnav tsis kam. Kev sib tsoo ob-kawg tuaj yeem siv rau kev ua haujlwm sab saum toj thiab hauv paus ntawm cov iav los txhim kho qhov tseeb geometric thiab qhov zoo ntawm cov iav.

Pwm: Pwm yog cov cuab yeej siv los tsim cov khoom, yuav tsum tau ua haujlwm siab thiab ua haujlwm siab. Kev sib tsoo ob zaug tuaj yeem siv los ua cov kab noj hniav thiab cov tub ntxhais ntawm cov tuag los txhim kho qhov tseeb geometric thiab qhov zoo ntawm qhov tuag.

Ntxiv rau,ob-kawg sib tsoo lub log kuj tseem siv tau rau ntau yam shafts, teeb tsa, lub tog raj kheej thiab lwm yam kev ua haujlwm ntawm parallelism thiab flatness yuav tsum siab heev, xws li bearings, zog, compressor qhov chaw, txhua yam gaskets, roj twj tso kua mis, Automotive qhov chaw, thiab lwm yam., haum rau tooj liab, txhuas, cam khwb cia hlau, yas, hlau hmoov thiab ntau yam hlau thiab lwm yam ntaub ntawv precision ua.
