CNC cuab yeej sib tsoo log hnav txoj kev

Kev siv cov cuab yeej CNC grinder

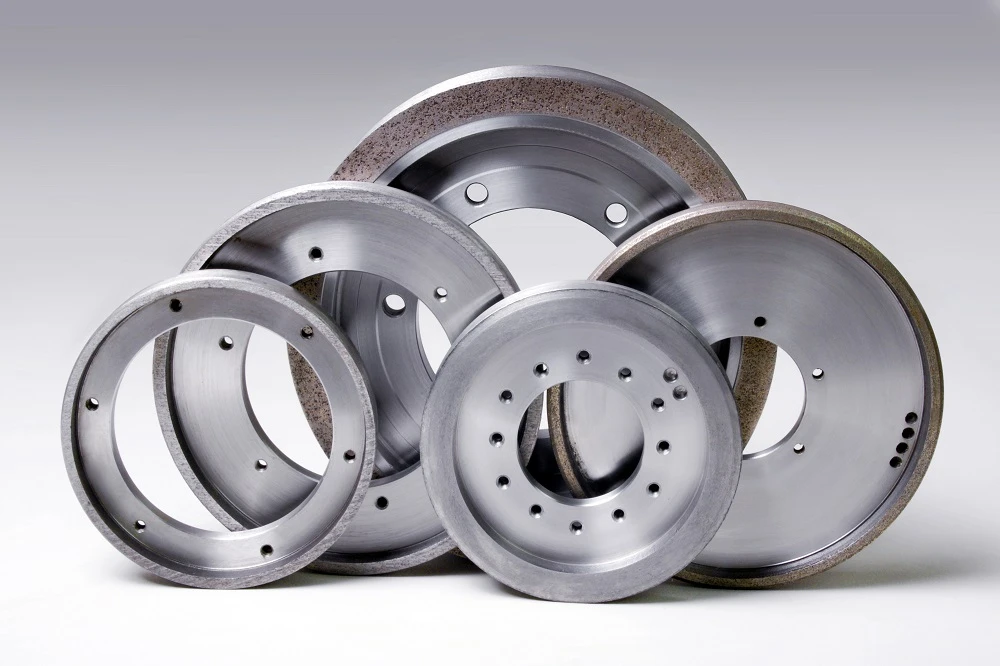

Pob zeb diamond sib tsoo wheelncaj qha cuam tshuam rau kev siv cov cuab yeej CNC ib txwm, ib feem me me, qee zaum yuav ua rau tsis ua haujlwm ntawm tag nrho cov phiaj xwm, yog li niaj hnub no los qhia txog CNC cuab yeej grinder pob zeb diamond sib tsoo log tsis siv neeg hnav khaub ncaws thiab cov txheej txheem them nyiaj.

Nrog rau txoj kev loj hlob ntawm tsis siv neeg CNC sib tsoo tshuab, siab yuav tsum tau muab tso rau pem hauv ntej rau nws cov khoom txhawb nqa.

Raws li ib qho ntawm cov kev txhawb nqa thev naus laus zis, on-line tsis siv neeg sib tsoo log hnav tshuab yuav tsum ua kom tau raws li cov kev xav tau ntawm niaj hnub CNC sib tsoo tshuab thiab ua kom nws txhim kho mus rau cov kev taw qhia ntawm high precision, super stability thiab tag nrho tsis siv neeg tswj.

Raws li cov cuab yeej sib tsoo muaj txiaj ntsig, pob zeb diamond sib tsoo lub log yog dav siv hauv kev ua haujlwm ntawm cov hlau tawv tawv, ceramics, CBN thiab lwm yam ntaub ntawv nyuaj.

Kev hnav khaub ncaws thiab kev siv nyiaj tsis siv neeg ntawm pob zeb diamond sib tsoo log txiav txim siab qhov kev ua tau zoo ntawm lub tshuab CNC sib tsoo tshuab thiab txiav txim siab qhov kev ua tau zoo thiab kev pabcuam lub neej ntawm kev sib tsoo log mus rau qhov zoo.

Txoj cai ntawm pob zeb diamond sib tsoo log hnav khaub ncaws

Kev hnav khaub ncaws ntawm pob zeb diamond sib tsoo log yog qhov tseem ceeb cuam tshuam rau kev sib tsoo ntawm lub log. Kev xaiv tsim nyog ntawm kev hnav khaub ncaws yuav ncaj qha cuam tshuam rau qhov zoo ntawm qhov chaw thiab kev sib tsoo precision ntawm workpiece.

Tam sim no, feem ntau siv txoj kev hnav khaub ncaws ntawm pob zeb diamond sib tsoo log yog: on-line electrolytic hnav khaub ncaws, hluav taws xob sib tsoo log hnav, khob sib tsoo log hnav, electrochemical-mechanical compound hnav khaub ncaws thiab laser hnav.

Txij li txoj kev hnav khaub ncaws ntawm lub khob lub log yog qhov yooj yim dua thiab yooj yim rau kev siv dua li lwm txoj kev hnav khaub ncaws, GC khob log hnav cov txheej txheem yog siv rau hauv daim ntawv no los ua kev hnav khaub ncaws tsis siv neeg ntawm pob zeb diamond log.

Kev hnav khaub ncaws ntawm pob zeb diamond sib tsoo log, ib yam ntawm cov tawv tawv tawv, feem ntau muab faib ua ob theem: shaping thiab sharpening.

Lub hom phiaj ntawm shaping yog tshem tawm cov duab yuam kev thiab nto defect ntawm lub sib tsoo log tom qab pib installation thiab xyuas kom meej lub geometric duab precision ntawm lub sib tsoo log.

Kev sib tsoo yog vim lub passivation ntawm lub log sib tsoo tom qab ua haujlwm rau lub sijhawm. Txhawm rau ua kom cov txiav ntug protruding lub binder thiab muaj qhov tsim nyog qhov siab, txaus nti kam rau ua qhov chaw yuav tsum tau tsim ntawm kev sib tsoo nplej, thiab cov txiaj ntsig zoo ntawm cov nplej sib tsoo hauv ib cheeb tsam yuav tsum loj npaum li qhov ua tau.

Txoj kev hnav lub tais pob zeb diamond log los ntawm GC khob log

Thaum lub sij hawm hnav khaub ncaws tiag tiag, qhov kev sib raug zoo ntawm geometric thiab daim ntawv tsa suab ntawm GC khob log thiab lub tais-pob zeb diamond log yog pom nyob rau hauv daim duab 1.Lub tais pob zeb diamond log thiab GC khob log sib tsoo siv yog kiag li staggered thiab haum. Lawv feem rotated ntawm ib tug tej yam ceev. Kev sib hloov linear ceev piv ntawm lub log hnav thiab lub log sib tsoo yog teem rau ntawm 8: 1.

Lub log hnav khaub ncaws yog tsau, thiab lub pob zeb diamond log yog hnav thiab pub raws li axis, kom GC khob log thiab lub tais pob zeb diamond log tsim kev sib tsoo sib tsoo.

Los ntawm kev sib tsoo lub ntsej muag kawg ntawm ob lub log sib tsoo, cov khoom siv tsis zoo ntawm cov pob zeb diamond sib tsoo log raug tshem tawm los ua ib qho chaw ua haujlwm siab, thiab lub ntsej muag ntawm pob zeb diamond sib tsoo lub log yog re-sharpened kom ua tiav lub hom phiaj ntawm kev hnav khaub ncaws.

Tsis siv neeg tswj txoj kev sib tsoo log hnav khaub ncaws

Hauv kev sib tsoo, hnav lub xeev ntawm kev sib tsoo log yog qhov tseem ceeb cuam tshuam rau kev sib tsoo zoo.

Lub nc cuab yeej grinder tuaj yeem saib xyuas lub log sib tsoo hauv lub sijhawm tiag tiag thaum lub sijhawm tag nrho cov txheej txheem ntawm cov hniav sib tsoo.

Nyob ntawm qhov loj thiab cov khoom siv ntawm lub tshuab tshuab, lub ntim thiab lub sijhawm sib tsoo yuav tsum tau muab tshem tawm los ntawm kev sib tsoo yuav sib txawv.

Ua txhua yam rau hauv kev txiav txim siab, teem caij rau kev hnav khaub ncaws tsis siv neeg.

Los ntawm kev suav cov sij hawm sib tsoo ntawm cov hniav sib tsoo thiab muab piv nrog lub sijhawm hnav khaub ncaws los ntawm qhov system hauv lub sijhawm.

Thaum lub sij hawm sib tsoo ncav cuag lub sij hawm hnav khaub ncaws luv luv, cov khaub ncaws hnav tau raug hu ua hauv NC qhov kev pab cuam kom paub txog kev hnav khaub ncaws tsis siv neeg ntawm kev sib tsoo.

Txhawm rau kom muaj kev nyab xeeb ntawm lub tshuab ua haujlwm, txoj kev tswj hwm kuj suav nrog kev saib xyuas lub sijhawm tiag tiag ntawm kev sib tsoo lub neej thiab hnav lub log lub neej.

Ntev npaum li nws tau pom tias kev hnav khaub ncaws tuaj yeem ua rau lub log sib tsoo lossis hnav lub log kom ncav cuag qhov ceeb toom tuab, lub tshuab yuav cia li xa cov teeb liab tswb thiab nres rau kev tuav phau ntawv.

Yog tias tsis yog lub log sib tsoo lossis lub log hnav mus txog lub tswb tuab, kev hnav khaub ncaws yuav ua tau zoo.

Tom qab hnav khaub ncaws, cov nqi them nyiaj ntawm kev sib tsoo log hnav khaub ncaws yog tso tawm los ntawm kev ua cov ntaub ntawv.

Txoj kev them nyiaj rau kev sib tsoo log hnav khaub ncaws

Qhov sib xws ntawm workpiece loj nyob ntawm qhov sib xws ntawm cov txheej txheem txheej txheem.

Tom qab kev sib tsoo lub log yog hnav ib zaug, lub thickness ntawm abrasive yuav txo qis thiab kev sib tsoo lub log kawg lub ntsej muag hloov mus rau txoj hauj lwm calibration, uas ua rau kev hloov ntawm lub xeev ntawm tag nrho cov txheej txheem system thiab qhov luaj li cas ntawm lub workpiece yuav tsum tau ua tiav, yog li lub qhov loj sib xws tsis tuaj yeem lav.

Yog li ntawd, nws yog ib qho tseem ceeb uas yuav tau them nyiaj rau kev sib tsoo log tom qab hnav khaub ncaws.

Kev tsom xam ntawm kev sib tsoo log hnav cov txheej txheem yog kev sib tsoo ntawm ob qho abrasives. Lub abrasive thickness ntawm lub sib tsoo log yuav tsis tsuas yog txo, tab sis kuj abrasive thickness ntawm lub hnav khaub ncaws log kuj yuav txo, uas yog tshwm sim los ntawm ib tug kev txiav txim.

Yog li ntawd, txoj kev them nyiaj ntawm kev sib tsoo log hnav yog txiav txim siab los ntawm ntau qhov kev sim.

Lub hardness thiab hnav tsis kam ntawm pob zeb diamond sib tsoo log yog ntau dua li GC khob hnav lub log.

Nws tuaj yeem kwv yees tias thaum lub sijhawm hnav khaub ncaws, lub thickness abrasive txo los ntawm pob zeb diamond sib tsoo log yog tsawg dua qhov txo los ntawm kev hnav khaub ncaws.

Raws li qhia hauv FIG. 4, lub log hnav khaub ncaws yog tsau rau hauv txoj hauj lwm. Thaum hnav khaub ncaws, lub log sib tsoo nce qib hnav khaub ncaws raws li kev coj noj coj ua. Vim yog kev sib cuam tshuam ntawm kev sib tsoo, lub thickness ntawm kev sib tsoo lub log thiab cov hnav khaub ncaws lub log txo qis ib txhij.

Kev sib raug zoo ntawm lawv yog: hnav khaub ncaws tus nqi=txo kev sib tsoo log Hnav lub log txo.

Txhawm rau kom ntseeg tau tias qhov loj me ntawm cov khoom ua haujlwm yuav tsum tau ua tiav, qhov txo qis ntawm kev sib tsoo log tom qab hnav khaub ncaws yuav tsum tau them nyiaj.

Cov ntaub ntawv hnav khaub ncaws tiag tiag qhia tau tias thaum hnav khaub ncaws hnav yog {{0}}}03 hli, qhov sib tsoo ntawm lub log yog 0.0015mm thiab thinning ntawm lub log yog 0.0275mm.
